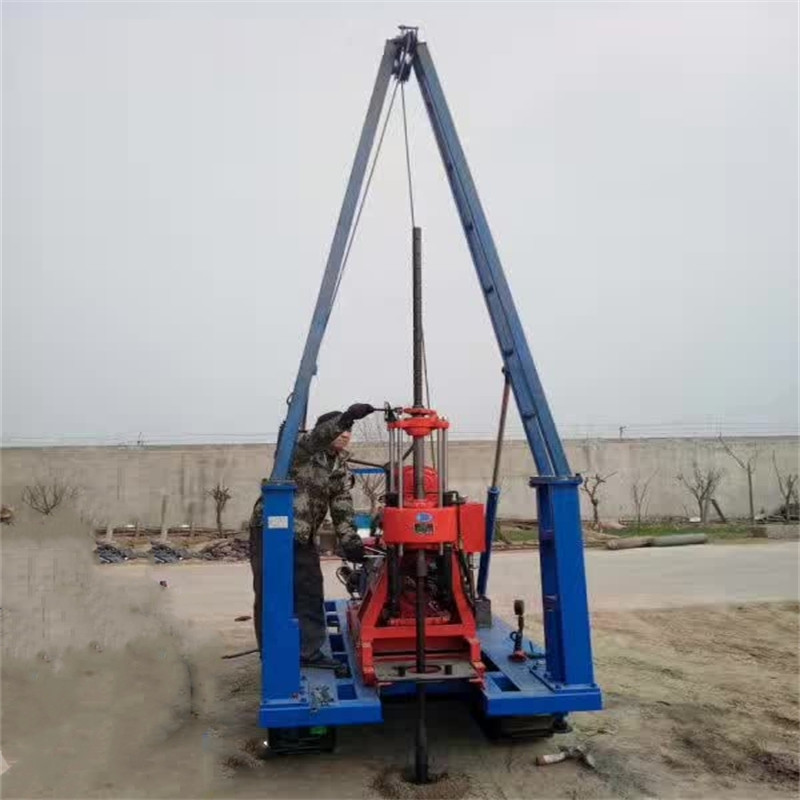

200mHydraulic Geotechnical Geological Core Sampling Drilling Rig

Product Categories

Hengshui Aoxing Geological Equipment Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 200mHydraulic Geotechnical Geological Core Sampling Drilling Rig
Brand: Aoxing
Price: 1 USD

Brand Name : Aoxing

Model Number : XY-200 type

Certification : ISO9001

Place of Origin : Hebei,China

MOQ : 1 Set

Supply Ability : 50 Sets/Month

Packaging Details : in Plywood Case

Hydraulic Geotechnical Geological Core Sampling Drilling Rig : XY-200

Motor : Diesel Engine

Drill Hole Diameter : 75-300mm

Drill Hole Depth : 200m

Bit Type : Diamond Bit

Drilling Way : Rotary

Usage : Soil Survey, Water Well, Coal

Contact Now

1. Applications of XY-200 hydraulic core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2. Parameters of XY-200 hydraulic core drilling rig

Model	XY-200
Maximum opening diameter	400mm
Maximum borehole depth	200m
Diameter of the end hole	75mm
Borehole dip angle	90-75°
Machine overall size	2.750.951.60m
Drill pipe diameter	50mm
Weight of drill rig diameter of drill pipe (without power)	760kg
Spindle
Shaft rotation speed	71/142/310/20r/min
Vertical axis stroke	450mm
Windlass
Maximum lifting weight of single rope	2008kb
Drum lifting speed	17/35/75/160 rm/s
Wire rope diameter:	13mm
Wire rope capacity	35mm
Width of sluice	70mm
Mud pump
Type: horizontal single cylinder double action	flow:180L/min
Maximum pressure	1.5mpa
Working pressure	0.7mpa
Inlet size	50mm
Outlet pipe diameter	45mm
Power
Diesel oil	22hp
Rated speed	2200r/min
Electric machinery	15kw
Rated speed	1460r/min

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
