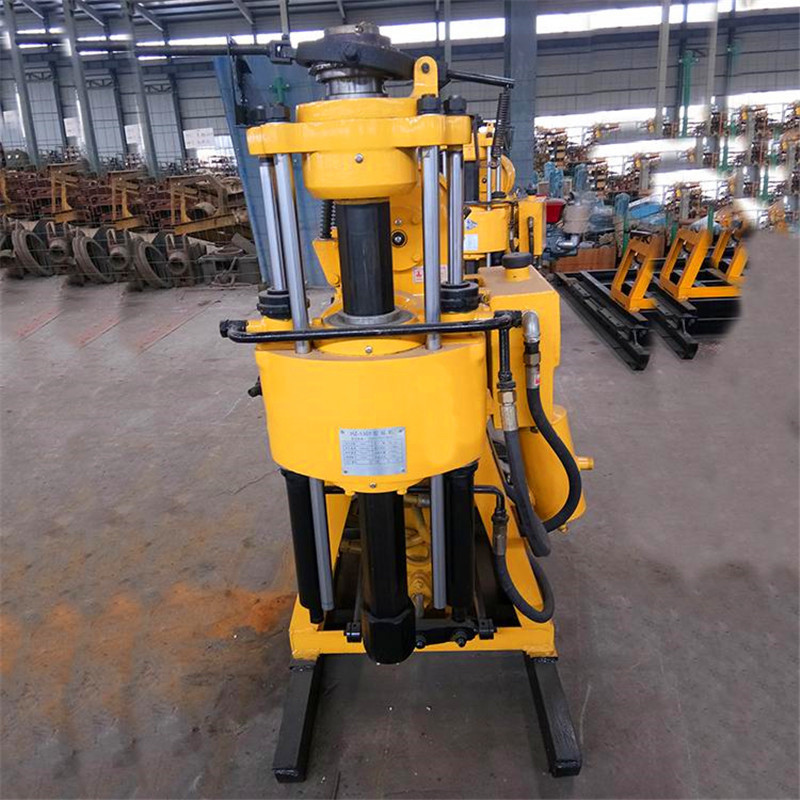

| Basic Parameter |
| Drilling depth | 60m | 225m | 295m |
| Drilling diameter | 300mm | 76mm | 46mm |
| Drill pipe diameter | 50 | | 42 |
| Spindle turnable angle | 0°~ 360° |
| Weight without engine | 750 kg |
| Dimension (length * width * height) | 1820 * 980 * 1400 mm |
| Rotary Table |
| Rotate speed | 900, 475, 388, 205, 157, 68 r/min |
| Maximum torque | 2000 N*m |
| Feeding travel | 400 mm |
| Maximum cylinder feeding force | 29 KN |
| Maximum cylinder lifting force | 39 KN |
| Lifter |
| Lifting capacity | 30 KN |
| Bobbin line speed, 2nd layer | 0.27, 0.64, 0.83, 1.58, 1.64 m/s |
| Bobbin diameter | 135 mm |
| Rope diameter | 12.5 mm |
| Rope capacity | 30 m |
| Oil pump |
| Type | CBF-F420-ALPL Gear Oil Pump |
| Displacement | 20 Ml/R |
| Rated speed | 2500 r/min |
| Rated pressure | 20 MPa |
| Maximum pressure | 25 MPa |
| Power |
| Rated power | 15 KW (Y160-4 electric), 18.2 KW (ZS-1115 diesel) |
| Rated speed | 1460 r/min (Y160-4 electric), 2200 r/min (ZS-1115 diesel) |
| Weight | 144 kg (Y160-4 electric), 190 kg (ZS-1115 diesel) |
| Frame |
| Type | Sliding type with base frame |
| Movable travel of drill | 400 mm |
| Distance between drill and hole-opening | 270 mm |
Hengshui Aoxing Geological Equipment Co., Ltd. has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials in the fields of water conservancy, geology, mining, tunnels, subways, construction, geological exploration, mining exploration, geotechnical engineering, soil investigation, etc.
The main products include: inflatable or water filled packer, manual packer, high-pressure grouting pipe, pneumatic hose, FULO grouting pipe, sleeve valve grouting pipe, grouting data acquisition instrument, grouting pump, screw grouting pump, cement mixer, high-speed grouting machine, mud station, spray, Lurong test packer and Lurong test equipment, diamond bit, reamer, geological drill pipe and casing, hydraulic drill, core drill, geological drill, exploration drill, soil testing and investigation drill, full hydraulic drill, module drill, portable drill, water well drill, engineering drill, mechanical top drive drill, small drill, DHT drill, air compressor, core barrel, fishing bucket, SP T tools, soil sampling tools, drilling tools and accessories, grouting pump accessories and drilling rig accessories, etc.
Our team is dedicated to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Provide solutions for engineering drilling.
We can provide accurate, valuable, and targeted solutions and services to our customers based on their specific requirements and needs.
