30M Diamond Core Percussion Drill Rig for Geological Exploration Sampling

Brand Name : Aoxing

Model Number : DT-20

Certification : ISO9001

Place of Origin : Hebei,China

MOQ : 1 Set

Supply Ability : 50 Sets/Month

Packaging Details : in Plywood Case

Model : DTD-20

Drilling depth (m) : 5-30

Hole Diameter (mm) : 44-108

Bit Type : Diamond Bit

Drilling Way : Rotary

Type : Portable

After-Sales Service Provided : Video Technical Support

Contact Now

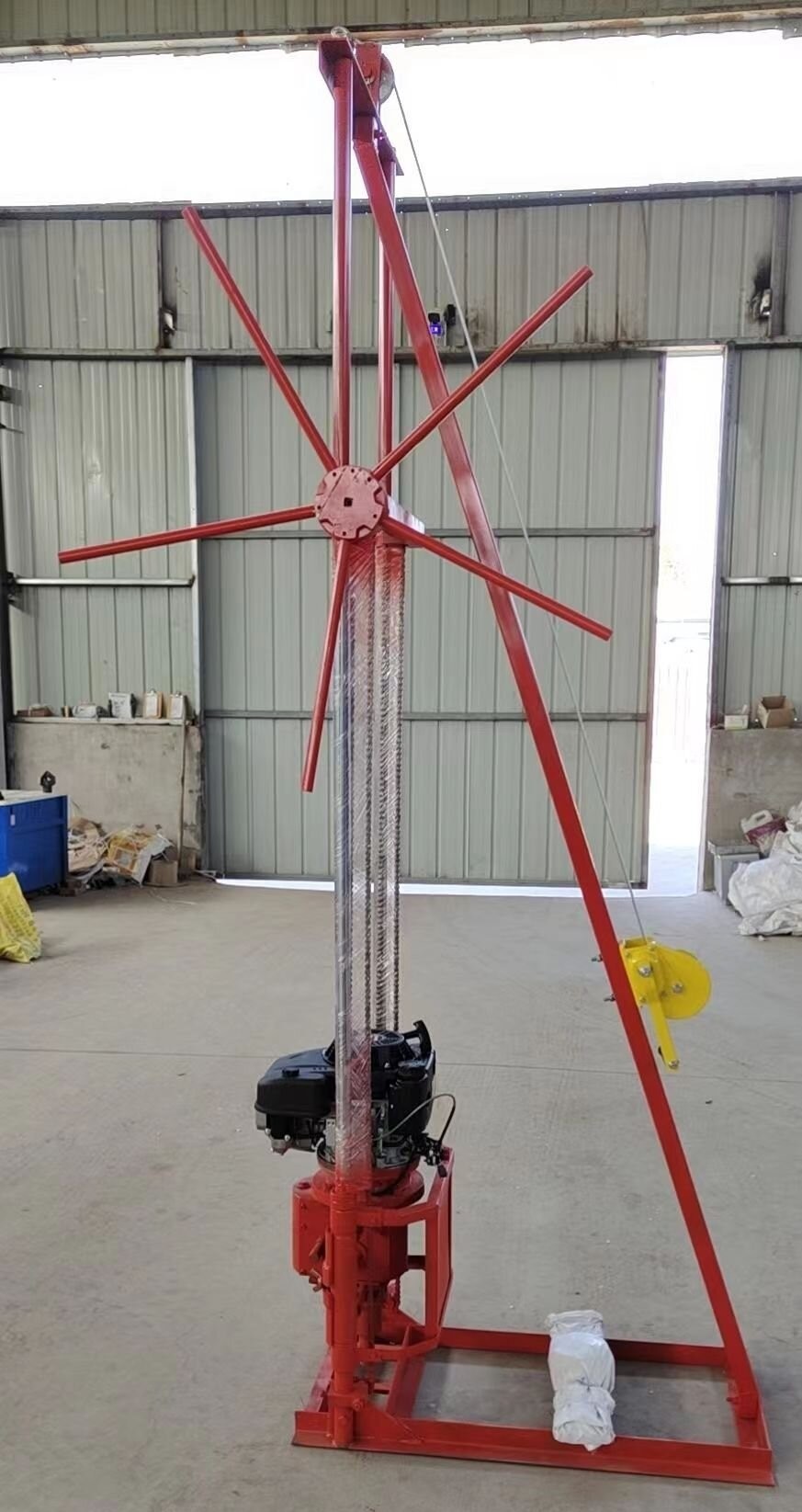

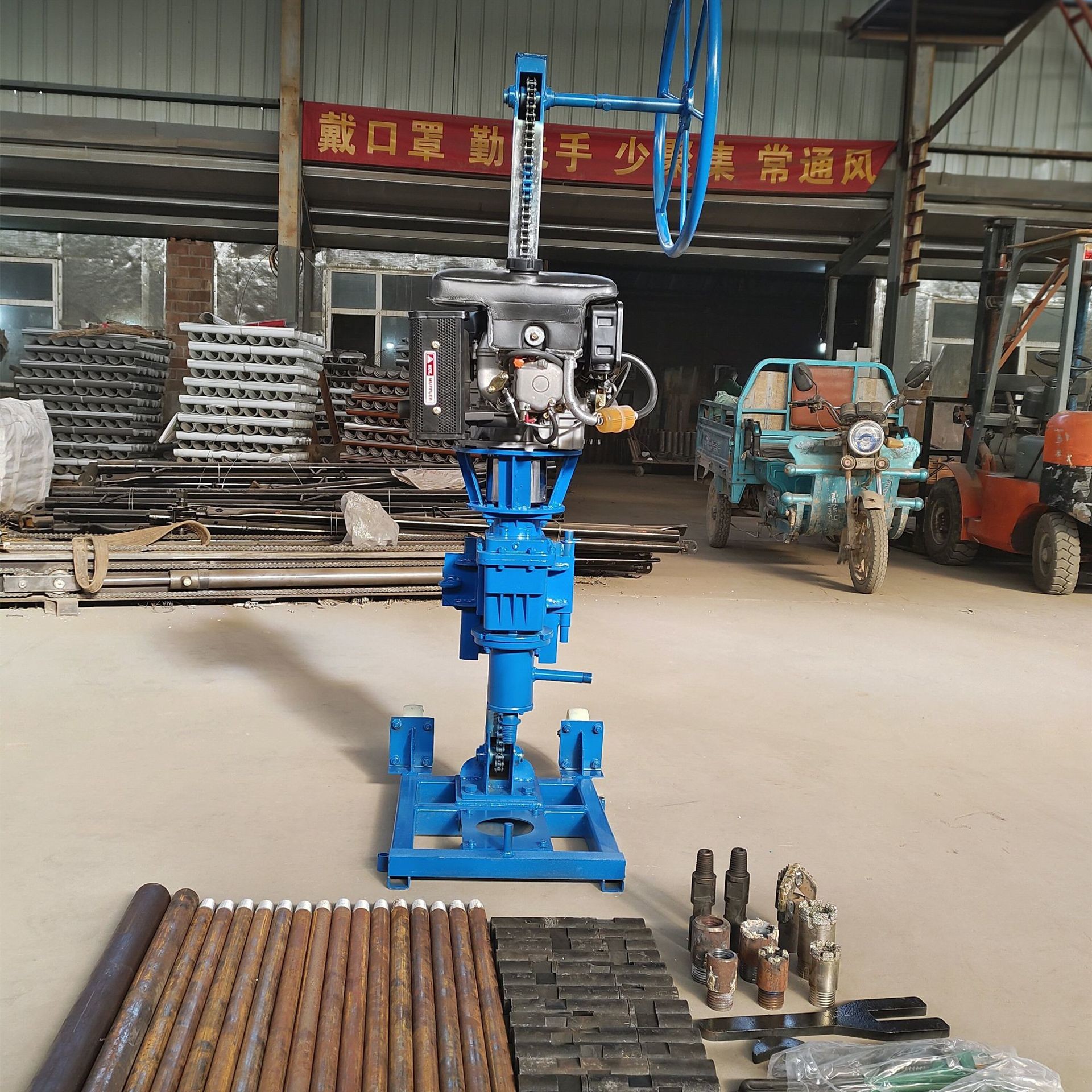

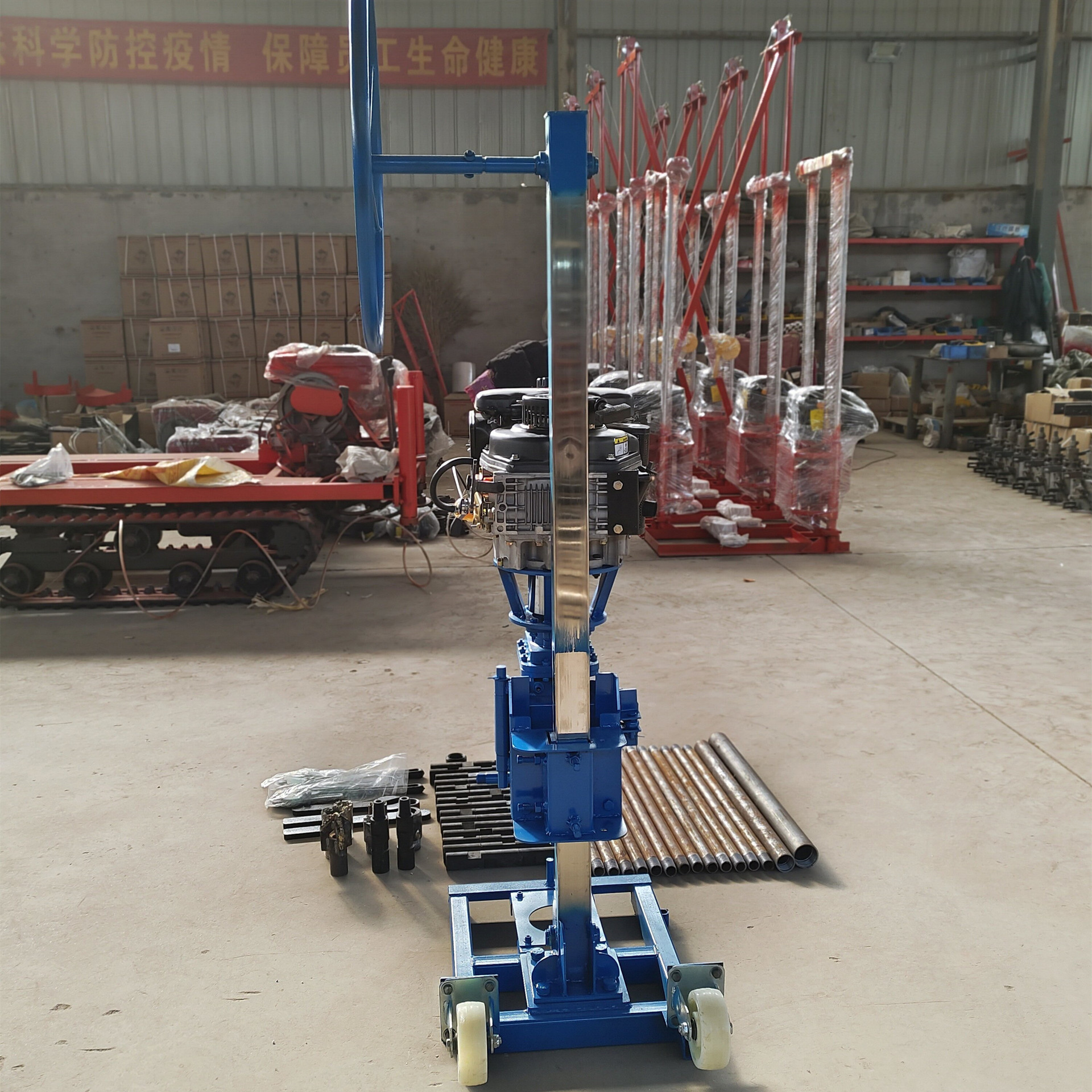

Portable 30 M Diamond Core Geological Exploration Sampling Drill Percussion Drill Rig

1. DTD-20 portable soil sampling rig is a portable soil sampling rig that is hand-held by a single person.
2. The effect is comparable to large hydraulic and pneumatic soil sampling RIGS.
3. The power (gasoline) soil sampling rig (soil sampler) simple operation, stable performance, can reduce the labor force of soil sampling personnel, take into account the sampling speed, simple.
4. Drilling applications: Geotechnical engineering investigation; Environmental soil survey; Agricultural soil survey. Groundwater investigation; Geological survey of coastal zone; Wetland environment survey. Tailings pond survey;Archaeological survey: Geophysical and geochemical exploration secondary halo sampling.

Model DTD-20 portable soil sampling rig
Drilling depth (m) 5-30
Hole Diameter (mm) 44-108
Drill pipe diameter (mm) 30
Power(kw) 4.5
HP 6
Displacement 225cc
Speed(r/min) 3600
Rig weight (kg) 60
Drill size(L*W*H)(mm) 800*1000*2000mm
Suitable for the soil Clay, silt, sand, artificial fill. Limestone, sandstone, granite
